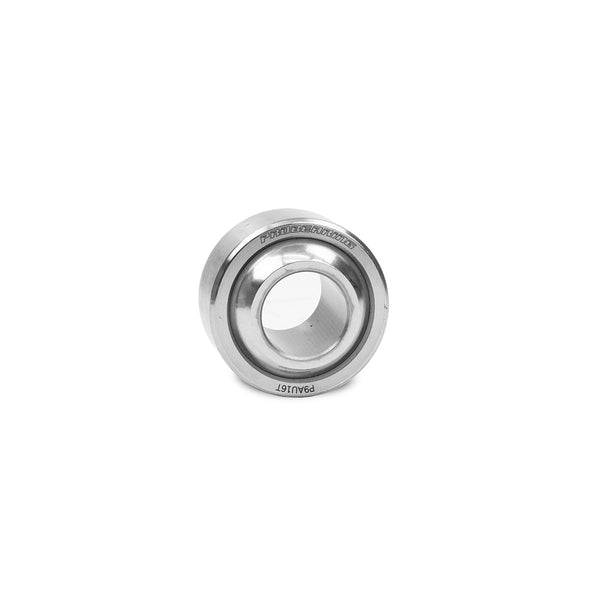

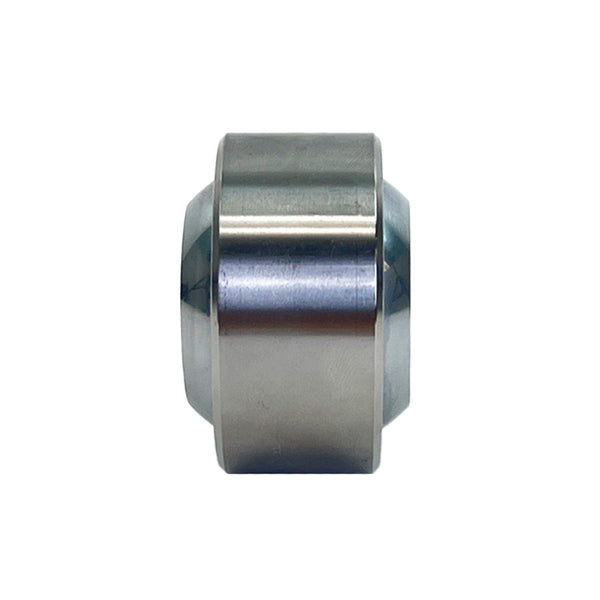

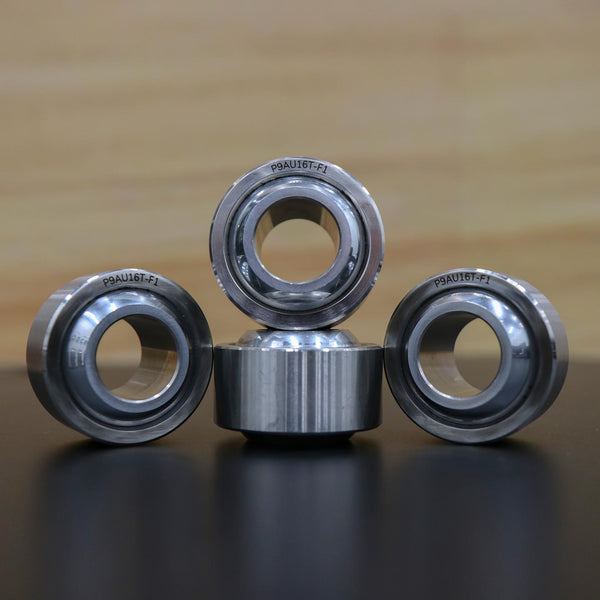

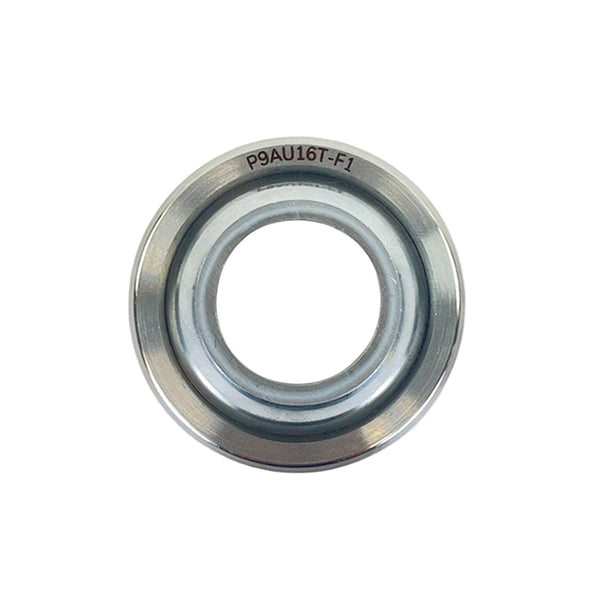

Spherical Bearing | 1" Bore x 2.125 Race | Stainless Steel
Shipping calculated at checkout
In stock
Pro 9 Series spherical bearings are a great choice for cylinders or linkages to take up misalignment between two connected parts. These strong, dependable spherical bearings are heat-treated with a bonded self-lubricating PTFE liner to handle abuse. These Pro 9 Series spherical bearings were specifically designed and engineered around intense off-road abuse.
· 17-4 PH Stainless steel bearing race
· 6 FT-LB to 24 FT-LB no-load break away torque
· 400 Series stainless steel ball
· PTFE liner
· F1: Extremely tight
· F2: Moderately tight
· F3: Freely moves
· (1) Pro 9 Series Spherical Bearing

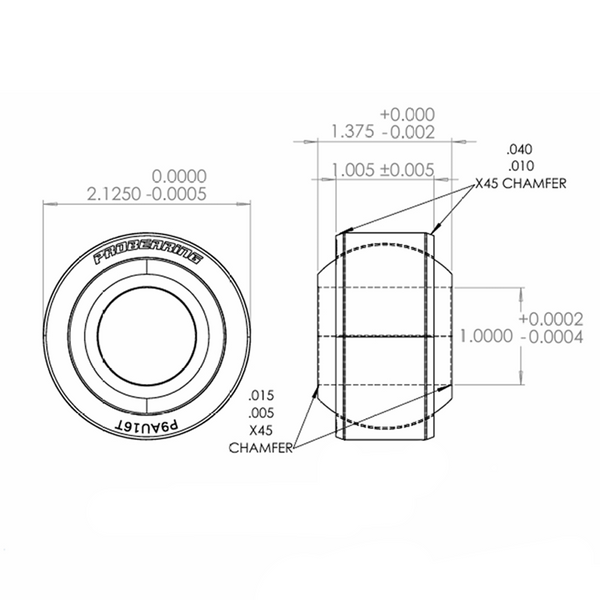

Specifications
| SKU | P9AU16T-F1 |
|---|---|
| Bore | 1.0000" (+.0002 / −.0004) |
| Outer race diameter | 2.1250" (+.0000 / −.0005) |
| Ball width | 1.375" (+.000 / −.002) |
| Race width | 1.005" ±.005 |
| Chamfers | .010–.040 x45 (race), .005–.015 x45 (ball) |
| Race | 17-4 PH Stainless steel bearing race |
| Ball | 400 Series stainless steel ball |
| Liner | PTFE liner |
| Breakaway torque (no-load) | 6 ft-lb to 24 ft-lb |
| Torque fit | F1 – extremely tight |
| Includes | (1) Pro 9 Series Spherical Bearing |
Interchange / Cross-Reference
Verify dimensions against the spec table above.
Why Probearing
- Probearing makes ball joints, bushings, rod ends, spherical bearings and related accessories designed specifically for the off-road market.
- The company is based in Lakeside, California: 10050 Marathon Pkwy, Suite 113, Lakeside CA 92040.
- Products carry a 1-year limited manufacturer warranty against defects in material and workmanship.
- Real people answer the phone and email: (619) 828-3570 · sales@probearing.com.
FAQ
Does it need grease?
No. The PTFE liner is self-lubricating — don't pack it with grease. Grease holds dirt and can shorten liner life.
What does F1 mean?
It's the torque fit. F1 is extremely tight, F2 is moderately tight, F3 moves freely. This listing is F1. Rated 6–24 ft-lb no-load breakaway torque.
What does it replace?
Crosses to FK Bearing WSSX16T / AIN16T and Rod End Supply WSSX16T. Check the 1.000" bore and 2.125" OD in the specs table.
What's it made of?
A 17-4 PH stainless race and a 400-series stainless ball, with a bonded PTFE liner.
What's included?
(1) Pro 9 Series Spherical Bearing. Cup, spacers and snap ring are sold separately.
What is the warranty?
One year from purchase against defects in material and workmanship, for the original purchaser. Probearing will repair or replace at its discretion. To claim, email or call with proof of purchase. The warranty does not cover installation or labor, misuse, improper installation, or normal wear.
Can I return it?
Yes, within 30 days of receiving it, in the original package and condition, if it is not installed or damaged and was bought directly from Probearing. A 3% processing fee applies. Shipped orders also have a 7% restocking fee, and neither return shipping nor the original shipping cost is refunded. Custom products are non-refundable.
Do you ship internationally?
Yes. Most orders ship via UPS or USPS. International buyers pay import taxes and fees. Orders over $500 need a signature. For bulk or freight orders, contact sales@probearing.com for a quote.
